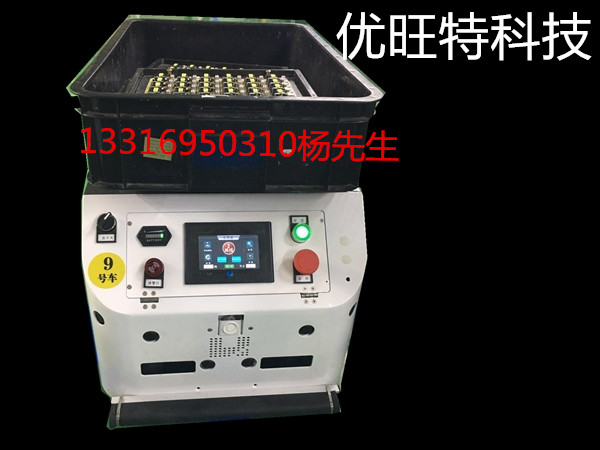

Shenzhen Youwangte Technology Co., Ltd. specializes in R&D and production, AGV material conveyor, supplying AGV equipment for many large enterprises; backpack AGV-UA12/UA22 series.
1. Work characteristics: Loading the cargo on the backpack AGV can realize the easy handling of the cargo. When multiple AGVs are used together, the assembly line can be formed to replace the assembly line. Form a flexible production system.

2. Refer to the following:

3. Technical specifications and parameters: walking mode magnetic strip guides moving forward and backward, turning left and right, bifurcation communication function wireless local area network (optional) drive mode differential drive motor DC24V, DC 48V brushless DC motor traction capacity 300Kg, 500Kg, 750kg, 1000kg (or customized) body type backpack type travel speed < 35m/bifurcation speed (or customized) rotation The minimum bending radius can reach 300 mm (tape route laying radius) navigation accuracy (+10 mm) working mode 24-hour climbing ability (+3-5 degree stopping accuracy) (+10 mm charging mode manual charging (optional automatic charging) safety induction range is less than 3 m, adjustable, emergency braking distance is less than 20 mm alarm form acousto-optic alarm battery maintenance-free charging battery, continuous discharge times > 500 times before safety protection. Double protection design life of square obstacle detection sensor + mechanical anti-collision mechanism > 10 years.
Standard AGV has been mass-produced, short cycle, low price, good quality! Welcome customers to order!
